SLM-1.8 Discharge Capacity: 1800L Concrete output: 7.2 m3/h Mixing drum capacity(L): 2680 Water tank: 400L

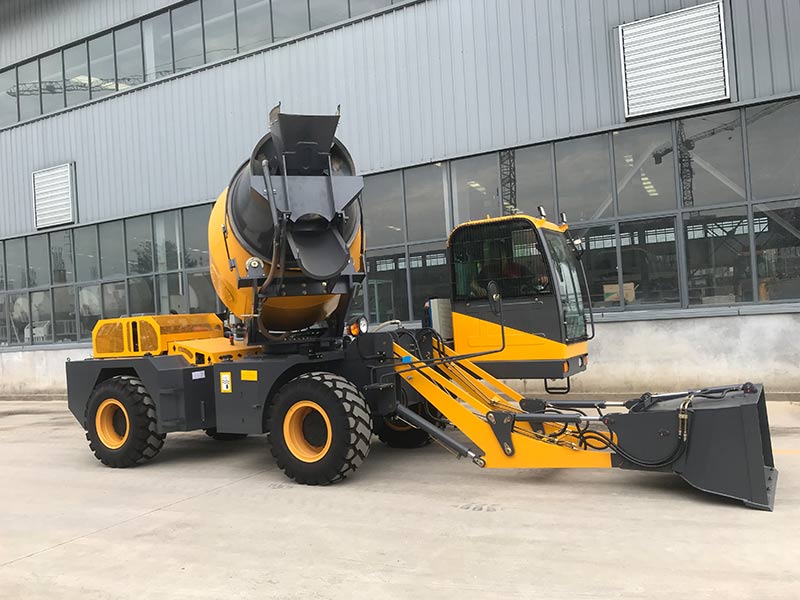

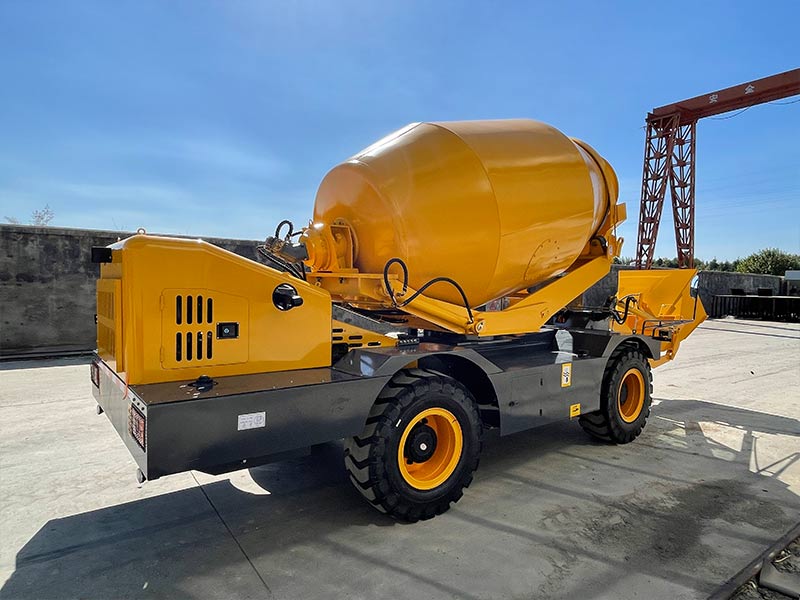

Self Loading Concrete Mixer Truck
Self loading concrete mixer is used for mixing and transporting concrete on working sites.
Self loading mobile concrete mixer is 2 in 1 of concrete mixer and concrete mixer truck, which can automatically feed, measure, mix and discharge concrete. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits.
SLM-2.6Discharge Capacity: 2600L Concrete Yield: 10.4 m³/hour Engine power: 78 Mixing drum capacity(L): 3580
SLM-3.5Discharge Capacity: 3500L Concrete output: 14 m3/hour Mixing drum capacity(L): 4740 Water tank: 620
SLM-4.0 Discharge Capacity: 4000L Concrete output: 16 m³/h Engine power: 91 Mixing drum capacity(L): 6000
SLM-5.5Discharge Capacity: 5500L Concrete output: 22 m³/h Mixing drum capacity(L): 7800 Engine power: 92
SLM-6.5Discharge Capacity: 6500L Total Hydraulic System Capacity: 278 Liters Mixing drum capacity(L): 9000 Engine power: 92
Product parameters
| Model | SLM-1.2 | SLM-1.8 | SLM-2.6 | SLM-3.5 | SLM-4.0 | SLM-5.5 | SLM-6.5 |
| Mixer drum | |||||||
| Mixer drum (L) | 1700 | 2740 | 3000 | 4740 | 6000 | 7800 | 9000 |
| Discharge (m3/batch) | 1.2 | 1.8 | 2.6 | 3.5 | 4 | 5.5 | 6.5 |
| Concrete output (m3/h) | 4.8 | 7.2 | 10.4 | 14 | 16 | 22 | 26 |
| Drum rotation speed (rpm) | 13 | 13 | 13 | 13-20 | 18-21 | 20 | 16.5 |
| Vehicle | |||||||
| Engine (kW) | Yunnei 55 | Yuchai 78 | Yuchai 78 | Yuchai 85 | Yuchai 91 | Weichai 92 | Weichai 92 |
| Water tank (L) | 400 | 500 | 500 | 620 | 780 | 860 | 1465 |
| Wheel base | 2560 | 2600 | 2800 | 2650 | 2480 | 3350 | 2850 |
| Equipment weight (kg) | 4920 | 6500 | 7000 | 7661 | 9000 | 11200 | 12520 |
| Overall dimension (mm) | 7300×1800×3450 | 7300×2650×3750 | 7860×2750×4100 | 7730×27000×4170 | 7640×2870×4750 | 8450x3100x4580 | 8450×3050×4830 |
Advantage
1. The main hydraulic components are all imported. 2. Save 5 labors at least every day! 3. Don't need electric concrete mixer, save electricity up to 100 degrees every day! 4. Don't need concrete mixer truck anymore! 5. Don't need wheel loader to load material anymore! 6. 270°, it will be easy for driver to see where to discharge the concrete. 7. Yuchai, China famous brand diesel engine, you can find repair center easily. 8. Air conditioner, will be comfortable for driver to drive it in summer. 9. Self-lubrication, save labor cost to maintain. 10. High pressure washing, easy to clean the drum. 11. Electric hydraulic weighing, accurately weigh the aggregates to make high quality concrete.
