Trailer Concrete Pump

Trailer concrete pump is a mechanical device used to transport concrete to concrete construction projects.
It is widely used in airport, road, bridge, water conservancy, electric power and civil buildings. According to the power supply, it is divided into diesel engine concrete pump and electric concrete pump.

Diesel Trailer Concrete Pump

30m3 concrete trailer pump for sale Items: HBTS30-10-78R Max. theo. concrete output(L./H): 30 M3/h Distribution valve type: S Valve Max. Theoretical Horizontal Conveying Distance: 500m Max. Theoretical Vertical Conveying Distance: 120mTotal weight: 3500kg

GET A QUOTE

40m3 trailer concrete pump with boom Items: HBTS40-13-85R Max. theo. concrete output(L./H): 40 M3/h Distribution valve type: S Valve Max. Theoretical Horizontal Conveying Distance: 500m Max. Theoretical Vertical Conveying Distance: 120mTotal weight: 4500kg

GET A QUOTE

60m3 trailer-mounted concrete pump Items: HBTS60-13-130R Max. theo. concrete output(L./H): 60 M3/h Distribution valve type: S Valve Max. Theoretical Horizontal Conveying Distance: 1200m Max. Theoretical Vertical Conveying Distance: 270mTotal weight: 6200kg

GET A QUOTE

Trailer Concrete Pump (Diesel) parameters

Model	HBTS20-8-39R	HBTS30-10-78R	HBTS40-13-85R	HBTS60-13-130R	HBTS80-16-140R	HBTS90-16-176R
Output (m³/h)	20	30	40	60	80	90
Concrete pressure (Mpa)	8	10	10	13	16	16
Engine	Changchai/Yuchai/Weichai/Cummins
Power (kW)	39	78/85	85	130	140	176
Max. aggregate size (mm)	20	30	30	pebble≤50 gravel≤40
Hopper capacity (m³)	0.3	0.3	0.35	0.8	0.8	0.8
Max. pumping distance vertical/horizontal (m)	100/200	100/400	120/500	270/1200	270/1200	270/1200
Filling height (mm)	1100	1100	1100	1400	1400	1400
Conveying cylinder dia.	Ø100/1600	Ø100/1600	Ø100/1600	Ø125/1600	Ø125/1600	Ø125/1600
Concrete cylinder dia.	Ø160/1600	Ø160/1600	Ø180/1600	Ø200/1600	Ø200/1600	Ø200/1600
Dimension(LxWxH) (m)	4.1x1.4x1.5	5.4x1.5x2.1	5.4x1.5x2.1	6x2.1x2.26	6x2.1x2.26	6x2.1x2.26
Weight (t)	2.55	4	4.5	6.2	6.4	6.8

GET A QUOTE

Electric Trailer Concrete Pump

30m3 electric trailer concrete pump Items: HBTS30-10-45 Max. theo. concrete output(L./H): 30 M3/h Distribution valve type: S Valve Max. Theoretical Horizontal Conveying Distance: 500m Max. Theoretical Vertical Conveying Distance: 150mTotal weight: 3000kg

GET A QUOTE

40m3 electric trailer concrete pumps for sale Items: HBTS40-12-55 Max. theo. concrete output(L./H): 40 M3/h Distribution valve type: S Valve Max. Theoretical Horizontal Conveying Distance: 850m Max. Theoretical Vertical Conveying Distance: 200mTotal weight: 4300kg

GET A QUOTE

Trailer Concrete Pump (Electric) parameters

Model	HBTS20-8-30	HBTS30-10-45	HBTS40-12-55	HBTS60-13-90	HBTS80-16-110	HBTS90-16-110
Output (m³/h)	20	30	40	60	80	90
Max pressure (Mpa)	8	10	12	13	16	16
Engine	Jiangsu Leader/Customizable
Power (kW)	30	45	55	90	110	110/132/160
Max. aggregate size (mm)	30	30	40	Pebble≤50 gravel≤40
Hopper capacity (m³)	0.3	0.4	0.52	0.8	0.8	0.8
Max. pumping distance vertical/horizontal (m)	130/300	150/500	200/850	270/1200	350/1200	350/1200
Filling height (mm)	1100	1100	1400	1400	1400	1400
Conveying cylinder dia.	Ø100A/800A	Ø100A/800A	Ø100/1600	Ø125/1600	Ø140/1800	Ø140/1800
Concrete cylinder dia.	Ø160/1000	Ø160/1000	Ø180/1600	Ø200/1600	Ø200/1800	Ø200/1800
Dimension(LxWxH) (m)	4.1×1.4×1.45	4.75x1.6x1.95	4.6x1.98x2.1	6x2.1x2.26	6.3x2.1x2.25	6.4x2.1x2.25
Weight (t)	2.2	3	4.3	5.8	6.2	6.5

GET A QUOTE

Advantage

1. Double open hydraulic loops with two pumps, makes the whole hydraulic system much simpler. 2. The wireless remote equipment is convenient for operation far away. 3. Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction changed reliably. 4. The design of hopper and S valve adopt I-DEAS software to calculate, with good rigidity to avoid the phenomenon of hopper distortion and S valve breakage. 5. The radiator equipment makes the working oil temperature of hydraulic system below 70℃ and makes the machine in normal status. 6. Though proximity switch, the operating position is restricted to ensure that the s valve swings back and forth and reversals.

GET A QUOTE

Delivery

GET A QUOTE

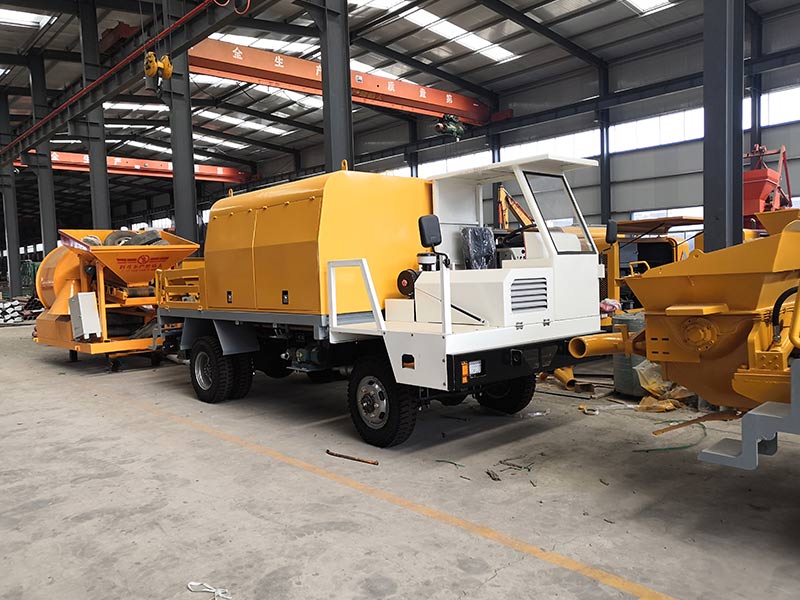

Workshop
