25m Concrete Boom Pump Truck for sale Vertical height of boom: 25m Concrete displacement: 120m3/h Concrete collapse: 160-220mm Vertical depth of boom: 10.5mHorizontal length of boom: 21.6m
Concrete Boom Pump

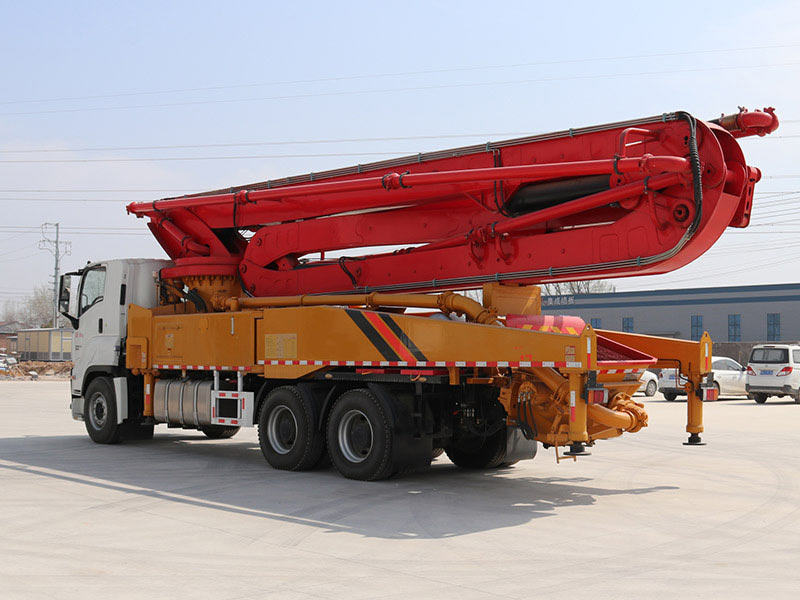

Concrete pump truck, also named concrete boom pump, is equipped with hydraulic folding boom on a truck or trailer. Concrete boom concrete pump or placing or boom concrete pump move faster and flexible in different sites. The Boom truck or boom pump for sale is suitable for projects that need to transport a large amount of concrete, such as high-rise buildings, bridges, tunnels, highway, airport, etc.
30m Boom Pump for sale Max. boom height: 30m Concrete displacement: 120m3/h Concrete collapse: 160-220mm Vertical depth of boom: 15.5mHorizontal length of boom: 26.6m
33m Concrete Boom Truck for sale Booming height: 33m Concrete displacement: 120m3/h Concrete collapse: 160-220mm Vertical depth of boom: 19mBoom folding form: 5RZ
38m Concrete Boom Pump Vertical boom: 38m Concrete displacement: 140m3/h Concrete collapse: 160-220mm Vertical depth of boom: 22mHorizontal length of boom: 33.2m
42m Stand Pump Vertical booming: 42m Concrete displacement: 140m3/h Concrete collapse: 160-220mm Vertical depth of boom: 29.5mDistribution valve form: S valve
47m Concrete Pump Truck Boom Vertical height of boom: 47m Concrete displacement: 163m3/h Concrete collapse: 160-220mm Vertical depth of boom: 32mCylinder inner diameter/stroke: 260/1600mm
50m Concrete Truck Pump Vertical height of boom: 50m Concrete displacement: 163m3/h Concrete collapse: 160-220mm High low voltage switching: autoHorizontal length of boom: 46m
58m Truck mounted Concrete Pump Vertical height of boom: 58m Concrete capacity: 170m3/h Concrete collapse: 160-220mm Vertical depth of boom: 38mBoom folding form: 6RZ
63m Truck Pump Vertical height of boom: 63m Conveying concrete: 170m3/h Lubrication mode: Central lubrication Vertical depth of boom: 47mMain oil pump displacement: 320ml/r
Concrete Boom Pump
Concrete pump truck, also named concrete boom pump, is equipped with hydraulic folding boom on a truck or trailer. Concrete boom concrete pump or placing or boom concrete pump move faster and flexible in different sites. The Boom truck or boom pump for sale is suitable for projects that need to transport a large amount of concrete, such as high-rise buildings, bridges, tunnels, highway, airport, etc.
25m Concrete Boom Pump Truck for sale Vertical height of boom: 25m Concrete displacement: 120m3/h Concrete collapse: 160-220mm Vertical depth of boom: 10.5mHorizontal length of boom: 21.6m
30m Boom Pump for sale Max. boom height: 30m Concrete displacement: 120m3/h Concrete collapse: 160-220mm Vertical depth of boom: 15.5mHorizontal length of boom: 26.6m
33m Concrete Boom Truck for sale Booming height: 33m Concrete displacement: 120m3/h Concrete collapse: 160-220mm Vertical depth of boom: 19mBoom folding form: 5RZ
38m Concrete Boom Pump Vertical boom: 38m Concrete displacement: 140m3/h Concrete collapse: 160-220mm Vertical depth of boom: 22mHorizontal length of boom: 33.2m
42m Stand Pump Vertical booming: 42m Concrete displacement: 140m3/h Concrete collapse: 160-220mm Vertical depth of boom: 29.5mDistribution valve form: S valve
47m Concrete Pump Truck Boom Vertical height of boom: 47m Concrete displacement: 163m3/h Concrete collapse: 160-220mm Vertical depth of boom: 32mCylinder inner diameter/stroke: 260/1600mm
50m Concrete Truck Pump Vertical height of boom: 50m Concrete displacement: 163m3/h Concrete collapse: 160-220mm High low voltage switching: autoHorizontal length of boom: 46m
58m Truck mounted Concrete Pump Vertical height of boom: 58m Concrete capacity: 170m3/h Concrete collapse: 160-220mm Vertical depth of boom: 38mBoom folding form: 6RZ
63m Truck Pump Vertical height of boom: 63m Conveying concrete: 170m3/h Lubrication mode: Central lubrication Vertical depth of boom: 47mMain oil pump displacement: 320ml/r
Concrete Boom Pump parameters
| Item | HBP-25 | HBP-30 | HBP-33 | HBP-38 | HBP-42 | HBP-47 | HBP-50 | HBP-58 | HBP-63 |
| Max. boom height (m) | 25 | 30 | 33 | 38 | 42 | 47 | 50 | 57.6 | 62.5 |
| Horizontal length of boom (m) | 21.6 | 26.6 | 29.5 | 33.2 | 38.8 | 42.65 | 46 | 52 | 58.5 |
| Vertical depth of boom (m) | 10.5 | 15.5 | 19 | 22 | 29.5 | 32 | 36.5 | 38 | 47 |
| Theoretical concrete throughput (m3/h) | 120 | 120 | 120 | 140 | 140 | 163 | 163 | 170 | 170 |
| Max. aggregate size (mm) | 40 | ||||||||
| System oil pressure (Mpa) | 31.5 | ||||||||
| Distribution valve form | S Valve | ||||||||
| Boom folding form | 4R | 5RZ | 5RZ | 5RZ | 5RZ | 5RZ | 6RZ | 6RZ | 6RZR |
| Main oil pump displacement (ml/r) | 190 | 190 | 190 | 190 | 190/260 | 260 | 260 | 320 | 320 |
| Cylinder inner diameter/stroke (mm) | 230/1600 | 230/1600 | 230/1600 | 230/1550 | 230/260/1600 | 260/1600 | 260/2200 | 260/2200 | 260/2200 |
| Dimension (LxWxH) (m) | 8.8 x.2.5 x.3.36 | 9 x 2.47 x 3.42 | 9.85 x 2.5 x 3.54 | 10.25 x 2.5 x 3.72 | 11.4 x 2.5 x 3.95 | 11.7 x 2.5 x 3.95 | 13.2 x 2.55 x 3.95 | 13.82 x 2.5 x 4 | 13.85 x 2.55 x 4 |
| Weight (ton) | 17 | 20 | 22 | 23 | 32 | 33 | 37 | 43 | 44 |
| Chassis brand | FAW/Dongfeng/Foton/Shacman/Howo/Isuzu/Hino | ||||||||
